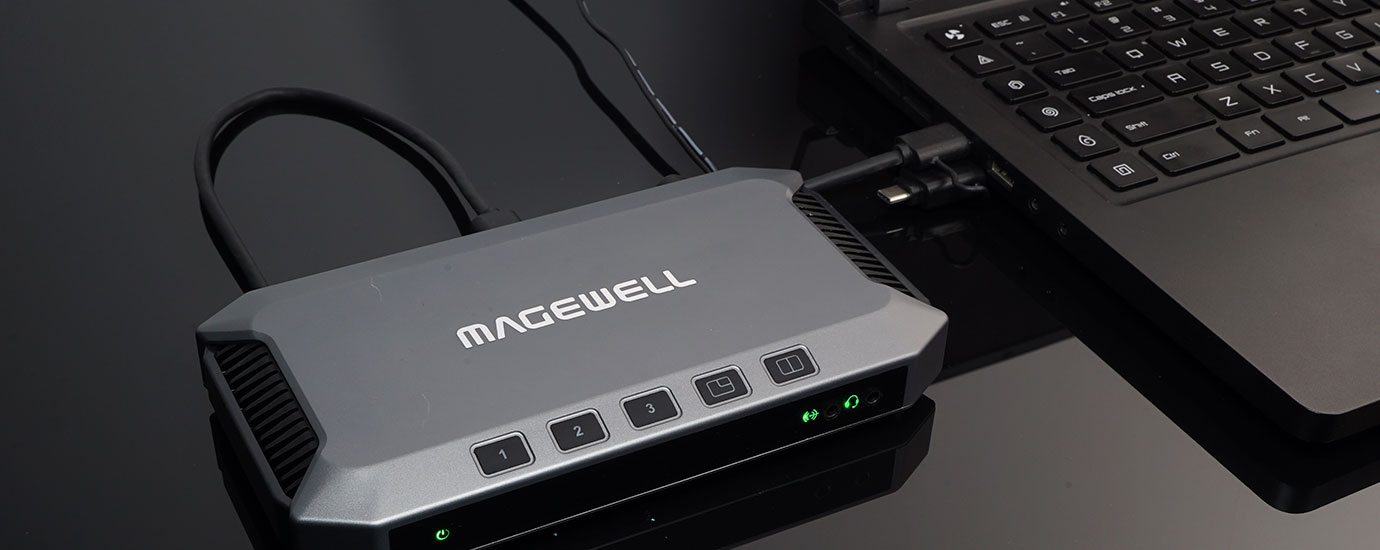

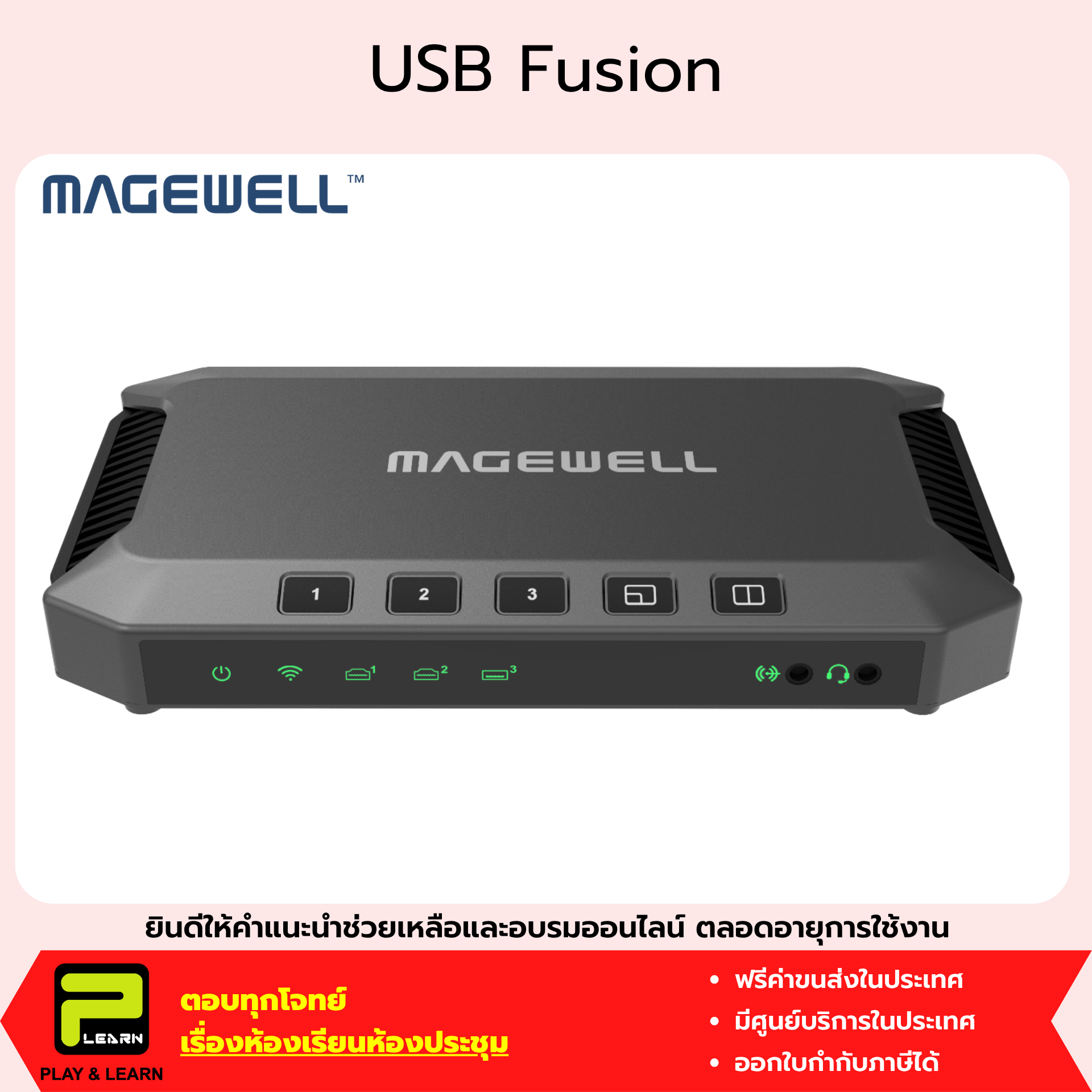

Magewell USB Fusion

Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you combine camera and wired screenshare inputs into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.
Capture and Combine

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.

Easy Setup and Flexible Features

As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.

Engaging Presentations

Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.

Interface

Specification and Features

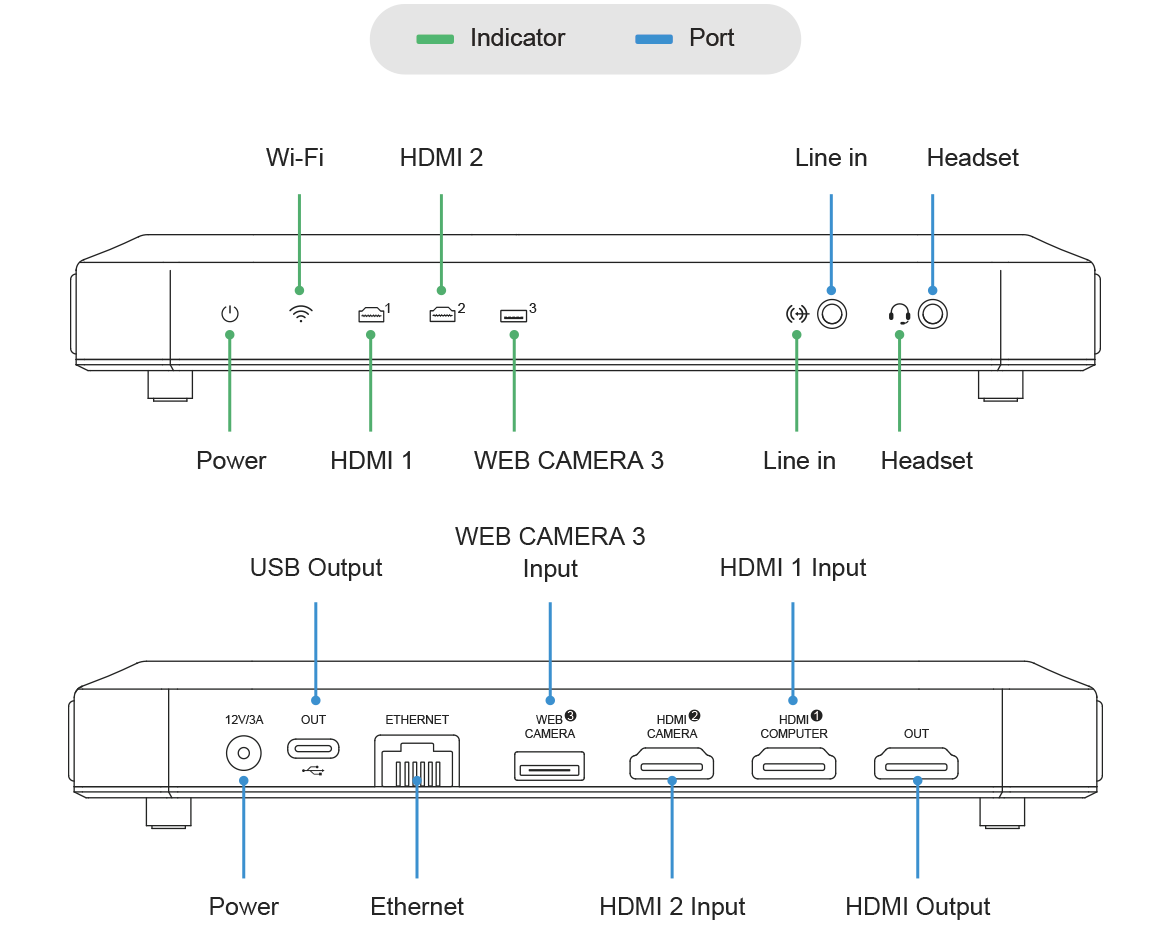

Interface

Input Interface&Output Interface

• 2x HDMI 1.4 Type-A input
• 1x USB 3.0 Type-A input
• Supports input resolution up to 1920x1080p, 60fps
• 1x USB 3.0 Type-C output
• 1x HDMI 1.4 Type-A output

• 3.5mm audio jack for line in and headset

• Windows, Linux, Mac

• USB Fusion App

• Skype, Zoom, Microsoft Teams, etc.

• Automatic, driver-free installation for plug-and-play
• On-device buttons and LED status indicator
• 2-year warranty
• Form factor: 186mm (L) x 101.2mm (W) x 30mm (H)

Related Video

Documents
User Manual for USB Fusion
