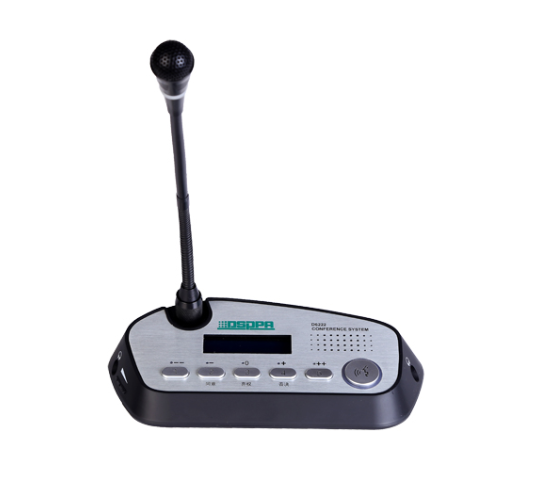

DSPPA D6222
Conference Speech & Vote Delegate Unit

ชุดไมโครโฟนประชุมไร้สาย สำหรับผู้ร่วมประชุม


Download Brochure

       D6222 belongs to conference room audio system, it is desktop delegate speech/vote unit provides functions such as speech, vote, check-in and self-checking. It adopt goose-neck microphone, built-in magnetic loudspeaker, headphone jack, and also provide power-on indicating light and button and light indicators. In VOICE mode, it can realize voice controller on/off function. It has high speed digital processors and HiFi audio circuits, and can indicate the work status of LCD screen. Conference units are passive equipment and are powered by the controllers. The input voltage is 24V; they are easy to use, with clear voice and easy to install with fashionable appearance.

Features

  • Speech and voting functions integrated

  • Built-in magnet HiFi speaker

  • High brightness LCD screen

  • 5 vote buttons and chairman priority button

  • Conference check-in function

  • Automatic camera tracking function when used with camera

  • Approve applications of delegates for speeches

  • Removable gooseneck

  • Gooseneck length : 315/320/415/430 mm

  • Black/silver colors available




Specifications

Structure and Type Desktop
Speaker Power 1.5W
Static power consumption <1W
Max. power consumption 2W
SNR >80dB
Crosstalk Attenuation >80dB
Harmonic distortion <0.5%
Headphone Output 9dBu, 8-32Ω, 3.5mm
Working Power Supply DC 24V power supply
Port on the unit 8pin DIN socket
Length of gooseneck microphone 315/320/415/430 mm
Microphone Type of microphone Electret, heart-shaped, condenser type
Frequency response 40Hz-20kHz
Sensitivity 2kΩ
Input impedance 20dB (SPL)
Equivalent Noise 125dB (THD<3%)
Max SPL 125dB (THD<3%)


ลักษณะการต่อเชื่อมกับระบบต่างๆ



เงื่อนไขอื่นๆ

หมายเหตุ

  • รับประกัน 3 ปี
  • ราคานี้ใช้สำหรับวางแผนทำงบประมาณ และยังไม่รวมสายไฟสายสัญญาณและค่าติดตั้ง
  • กรุณาติดต่อ Line: @PlearnSystem เพื่อขอราคาโครงการ
  • Reseller และ Systems Integrator กรุณาติดต่อ Line: @mmtpartner
  • เชิญชมการสาธิตได้ทั้ง On-Site และ On-Line
  • ยินดีให้ข้อมูลการออกแบบประยุกต์ใช้งาน และให้คำแนะนำการต่อเชื่อมกับระบบต่างๆ เช่น ระบบในห้องประชุมขนาดใหญ่ ห้องเรียนอัจฉริยะ ห้องเรียน STEM และห้องเรียนเป็นทีม (Team based learning)
  • ยินดีให้บริการแนะนำแก้ปัญหาตลอดอายุการใช้งาน
  • ออกใบกำกับภาษีได้
  • ฟรีค่าขนส่งในประเทศ
